Unlocking the Power of GigE Vision Industrial Camera Protocol: The Game-Changer in High-Speed, Reliable Image Acquisition for Industry 4.0
- Introduction to GigE Vision: Origins and Evolution
- Core Features and Technical Specifications
- How GigE Vision Enhances Industrial Automation
- Comparing GigE Vision with Competing Protocols
- Integration Challenges and Best Practices
- Security and Reliability in Networked Camera Systems
- Future Trends: GigE Vision in AI and Smart Manufacturing
- Case Studies: Real-World Applications and Success Stories
- Sources & References
Introduction to GigE Vision: Origins and Evolution
GigE Vision is an industrial camera protocol developed to standardize the transmission of high-speed video and related control data over standard Ethernet networks. Introduced in 2006 by the Automate (A3) – Association for Advancing Automation, GigE Vision was designed to address the growing need for interoperability and scalability in machine vision systems. Prior to its introduction, industrial imaging relied on proprietary or specialized interfaces, such as Camera Link or FireWire, which often limited flexibility and increased integration costs.
The protocol leverages the widespread adoption and cost-effectiveness of Gigabit Ethernet technology, enabling cameras and devices from different manufacturers to communicate seamlessly. GigE Vision defines both the hardware interface and the communication protocol, ensuring reliable image transfer, device discovery, and control over standard network infrastructure. Its evolution has been marked by several key updates, including support for higher bandwidths, multi-camera synchronization, and enhanced data security.
Over the years, GigE Vision has become the de facto standard for industrial imaging in sectors such as manufacturing, logistics, and scientific research. Its open architecture and compatibility with the GenICam Standard Group have further facilitated rapid adoption and integration into diverse machine vision applications. The protocol continues to evolve, with ongoing development focused on increasing data rates, reducing latency, and supporting advanced features like real-time triggering and precise timestamping.
Core Features and Technical Specifications
The GigE Vision industrial camera protocol is engineered to facilitate high-speed, reliable image data transfer over standard Ethernet networks, making it a preferred choice for machine vision applications. At its core, GigE Vision leverages the Gigabit Ethernet standard (IEEE 802.3), enabling data rates up to 1 Gbps and supporting cable lengths up to 100 meters with Cat5e or higher cabling. This extended range and bandwidth are critical for large-scale industrial environments where flexibility and scalability are paramount.
A key feature of GigE Vision is its use of the GigE Vision Standard protocol stack, which includes the GigE Vision Control Protocol (GVCP) for device discovery, configuration, and control, and the GigE Vision Streaming Protocol (GVSP) for efficient image data transmission. The protocol supports both unicast and multicast data transfer, allowing multiple clients to access the same camera stream simultaneously—a valuable asset for distributed inspection systems.
GigE Vision cameras are typically compliant with the GenICam Standard, ensuring interoperability and standardized camera feature access across different manufacturers. This compatibility simplifies integration and software development, as users can control diverse cameras using a unified API.
Additional technical specifications include support for Power over Ethernet (PoE), which reduces cabling complexity by delivering power and data over a single cable, and robust error correction mechanisms to ensure data integrity. The protocol also accommodates advanced features such as precise hardware triggering, timestamping, and packet resend functionality, which are essential for synchronized, lossless image acquisition in demanding industrial applications.
How GigE Vision Enhances Industrial Automation

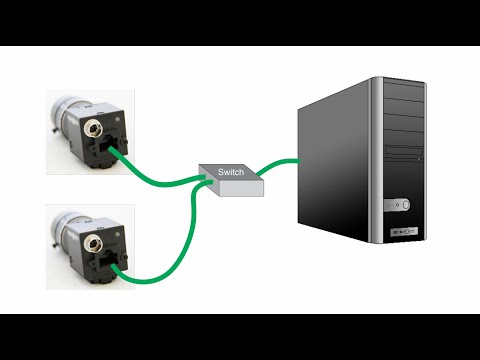

GigE Vision significantly enhances industrial automation by providing a standardized, high-speed interface for image acquisition and data transfer between cameras and processing systems. Leveraging the ubiquity and scalability of Gigabit Ethernet, GigE Vision enables seamless integration of multiple cameras across large factory floors, supporting cable lengths up to 100 meters without repeaters. This flexibility is crucial for modern automated environments, where cameras must be distributed across complex production lines.
The protocol’s high bandwidth—up to 1 Gbps and beyond with newer standards—facilitates real-time transmission of high-resolution images and video streams, which is essential for applications such as quality inspection, robotic guidance, and process monitoring. GigE Vision’s support for Power over Ethernet (PoE) further simplifies deployment by allowing both data and power to be delivered over a single cable, reducing installation costs and system complexity.
Another key advantage is interoperability. GigE Vision is maintained by the Automate (A3) – Association for Advancing Automation, ensuring that compliant devices from different manufacturers can work together seamlessly. This open standardization accelerates system integration and future-proofs investments, as users are not locked into proprietary solutions.
Additionally, GigE Vision supports advanced features such as precise camera synchronization, multicasting, and event-driven image capture, which are vital for coordinated automation tasks. The protocol’s robust error correction and packet resend mechanisms ensure reliable data transfer even in electrically noisy industrial environments. Collectively, these features make GigE Vision a cornerstone technology for scalable, efficient, and reliable industrial automation systems.
Comparing GigE Vision with Competing Protocols
When evaluating the GigE Vision Industrial Camera Protocol against competing protocols such as USB3 Vision, Camera Link, and CoaXPress, several key factors emerge. GigE Vision leverages standard Ethernet infrastructure, enabling long cable lengths (up to 100 meters with Cat5e/6) and straightforward integration into existing networks. In contrast, USB3 Vision offers higher bandwidth (up to 5 Gbps) but is limited to cable lengths of approximately 3-5 meters, making it less suitable for large-scale or distributed installations.
Camera Link, another established protocol, provides low-latency, high-speed data transfer but requires specialized cables and frame grabbers, increasing system complexity and cost. Its maximum cable length is typically limited to 10 meters without repeaters. CoaXPress excels in ultra-high-speed applications, supporting data rates up to 12.5 Gbps per cable and cable lengths up to 100 meters, but also demands proprietary hardware and is generally more expensive.
GigE Vision’s main advantages are its scalability, cost-effectiveness, and ease of deployment, especially in distributed or multi-camera systems. It supports Power over Ethernet (PoE), reducing cabling requirements, and is widely adopted in industrial automation, surveillance, and scientific imaging. However, its maximum bandwidth (1 Gbps for standard GigE, up to 10 Gbps for 10GigE Vision) may be a limiting factor for applications requiring extremely high frame rates or resolutions.
Ultimately, the choice between GigE Vision and competing protocols depends on specific application requirements, including bandwidth, cable length, system complexity, and budget. For many industrial and machine vision tasks, GigE Vision offers an optimal balance of performance, flexibility, and cost. For more details, refer to the Automate Standards page.
Integration Challenges and Best Practices
Integrating cameras using the GigE Vision industrial camera protocol presents both opportunities and challenges for system designers. One of the primary challenges is ensuring network stability and bandwidth management, as GigE Vision cameras can generate significant data traffic, especially in multi-camera setups. Network congestion can lead to dropped frames or increased latency, which is critical in time-sensitive industrial applications. To mitigate this, it is recommended to use dedicated network segments or VLANs for camera traffic and to employ managed switches that support Quality of Service (QoS) settings. This ensures prioritized and reliable data transmission.
Another challenge is achieving interoperability between devices from different manufacturers. While GigE Vision is a standardized protocol, variations in implementation can lead to compatibility issues. Adhering strictly to the latest version of the Automated Imaging Association (AIA) GigE Vision standard and using GenICam-compliant software interfaces can help ensure seamless integration.
Best practices also include careful configuration of packet size (MTU) and packet delay settings to optimize throughput and minimize jitter. Regular firmware updates and thorough testing in the target environment are essential to identify and resolve potential issues early. Additionally, leveraging the discovery and configuration tools provided by camera manufacturers or third-party vendors can simplify device management and troubleshooting.
Finally, robust error handling and monitoring mechanisms should be implemented to detect and respond to network interruptions or device failures, ensuring system reliability and uptime in demanding industrial environments. For further guidance, consult the official AIA resources and technical documentation.
Security and Reliability in Networked Camera Systems
Security and reliability are critical considerations in networked camera systems utilizing the GigE Vision Industrial Camera Protocol. As these cameras are increasingly deployed in sensitive industrial, medical, and surveillance environments, ensuring data integrity and protection against unauthorized access is paramount. GigE Vision leverages standard Ethernet infrastructure, which inherently exposes systems to common network vulnerabilities such as eavesdropping, man-in-the-middle attacks, and unauthorized device access.
To address these concerns, the latest versions of the protocol incorporate features such as device authentication, user access control, and encrypted data transmission. For example, the Automated Imaging Association (AIA) has introduced optional security profiles in GigE Vision 2.1 and later, enabling secure device discovery and communication. These profiles support mechanisms like TLS (Transport Layer Security) to encrypt image and control data, mitigating the risk of interception or tampering.
Reliability is equally vital, especially in real-time applications where data loss or latency can disrupt operations. GigE Vision addresses this through packet resend mechanisms and support for Quality of Service (QoS) features, ensuring consistent image delivery even in congested network environments. The protocol’s use of UDP for image streaming, combined with its packet recovery strategies, balances high throughput with robust error handling. Additionally, network segmentation and VLANs can be employed to isolate camera traffic, further enhancing both security and reliability.
Ultimately, the combination of protocol-level safeguards and best practices in network design enables GigE Vision systems to meet the stringent demands of modern industrial imaging applications, as outlined by the Automated Imaging Association.
Future Trends: GigE Vision in AI and Smart Manufacturing
The integration of the GigE Vision industrial camera protocol with artificial intelligence (AI) and smart manufacturing is shaping the future of industrial automation. As manufacturing environments become increasingly data-driven, the demand for high-speed, high-resolution image acquisition and real-time processing is growing. GigE Vision, with its standardized Ethernet-based communication, is well-positioned to support these advancements by enabling seamless connectivity between cameras, edge devices, and centralized processing units.
One significant trend is the deployment of AI-powered machine vision systems that leverage GigE Vision cameras for tasks such as defect detection, predictive maintenance, and process optimization. The protocol’s support for high bandwidth and low latency transmission allows for rapid data transfer, which is essential for AI algorithms that require large volumes of image data for training and inference. Additionally, the adoption of Time-Sensitive Networking (TSN) and 10 Gigabit Ethernet is expected to further enhance the protocol’s capabilities, providing deterministic communication and even higher throughput for demanding applications Automate (A3) – GigE Vision Standard.
In smart manufacturing, GigE Vision’s interoperability and scalability facilitate the integration of diverse vision systems across production lines, supporting flexible and modular factory layouts. The protocol’s compatibility with Industry 4.0 initiatives and Industrial Internet of Things (IIoT) frameworks enables real-time data sharing and analytics, driving smarter decision-making and adaptive manufacturing processes EtherCAT Technology Group. As AI and smart manufacturing continue to evolve, GigE Vision is expected to remain a foundational technology, supporting the next generation of intelligent, connected factories.
Case Studies: Real-World Applications and Success Stories
The GigE Vision industrial camera protocol has been widely adopted across various industries, enabling high-speed, reliable image acquisition and transmission over standard Ethernet networks. Its real-world applications demonstrate significant improvements in efficiency, scalability, and integration flexibility.
In the automotive sector, manufacturers have leveraged GigE Vision cameras for automated optical inspection (AOI) and robotic guidance. For example, a leading automotive assembly plant integrated GigE Vision cameras into their quality control lines, resulting in a 30% reduction in inspection time and a marked decrease in human error. The protocol’s support for long cable lengths and multi-camera synchronization proved essential for monitoring large assembly areas A3 Association for Advancing Automation.
In the pharmaceutical industry, GigE Vision has enabled real-time monitoring of packaging lines. A major pharmaceutical company implemented a network of GigE Vision cameras to inspect blister packs for defects and verify label accuracy. This deployment led to a significant drop in product recalls and improved compliance with regulatory standards Basler AG.
Additionally, in logistics and warehousing, GigE Vision cameras are used for barcode reading and parcel tracking. A global logistics provider reported a 25% increase in throughput after upgrading to a GigE Vision-based system, citing the protocol’s high bandwidth and ease of integration with existing IT infrastructure as key factors Teledyne DALSA.
These case studies underscore the protocol’s versatility and its role in driving innovation and operational excellence across diverse industrial environments.
